DW Series Single Layer Belt Drying Equipment

Details Parameter Application

DW single-layer belt dryer is a penetrating continuous drying equipment, used for drying flakes, strips, granular materials with good permeability, especially suitable for dehydrated vegetables, traditional Chinese medicine tablets and other materials with high water content and high temperature not allowed.

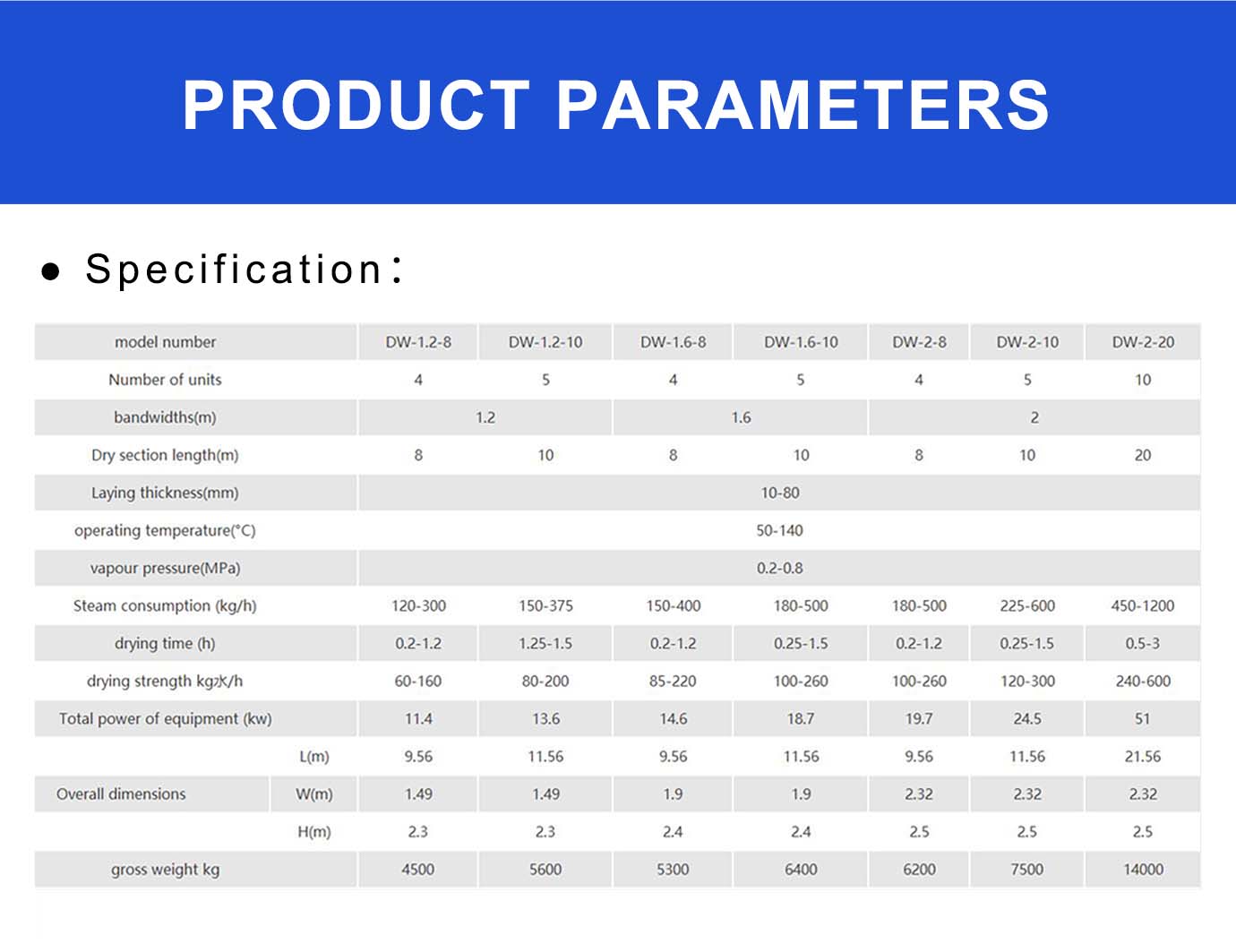

model number		DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10	DW-2-20
Number of units		4	5	4	5	4	5	10
bandwidths(m)		1.2		1.6		2
Dry section length(m)		8	10	8	10	8	10	20
Laying thickness(mm)		10-80
operating temperature(°C)		50-140
vapour pressure(MPa)		0.2-0.8
Steam consumption (kg/h)		120-300	150-375	150-400	180-500	180-500	225-600	450-1200
drying time (h)		0.2-1.2	1.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.5-3
drying strength kg水/h		60-160	80-200	85-220	100-260	100-260	120-300	240-600
Total power of equipment (kw)		11.4	13.6	14.6	18.7	19.7	24.5	51
	L(m)	9.56	11.56	9.56	11.56	9.56	11.56	21.56
Overall dimensions	W(m)	1.49	1.49	1.9	1.9	2.32	2.32	2.32
	H(m)	2.3	2.3	2.4	2.4	2.5	2.5	2.5
gross weight kg		4500	5600	5300	6400	6200	7500	14000

Dehydrated vegetables, granular feed, monosodium glutamate,coconut,organic pigments, synthetic rubber, propylene fibers,medicines, medicinal herbs, small wood products, plastic prod-ucts, electronic non-device aging, curing and so on.

Jiangsu Fanqun Drying Firm Equipment Factory Co., Ltd. products sell well all over the country, exported to the United States, Japan and Southeast Asian countries, welcomed by domestic and foreign users, the market reputation is excellent, but also China's drying equipment in the professional manufacturer of larger, more varieties of better quality of enterprises.

Complete scientific and quality system Professional technical team and superb technology Sophisticated production equipment

The company has large laser cutting machine, large water cutting machine, large plasma cutting machine, large automatic welding machine, non-destructive testing, mass spectrometer planer, bending machine, shearing machine and other high-end manufacturing and processing and inspection equipment.

Perfect after-sales service system

Pre-sales services :To provide you with project design, process design, suitable for your machine and equipment selection program development, according to your special needs, design and manufacture of products, for your training of technical operators.

Services during sale :Accompany you through the acceptance of the equipment and assist in the development of construction plans and detailed procedures.

After-sales service :The company sends technicians to the site to guide equipment installation commissioning site and training operators.
