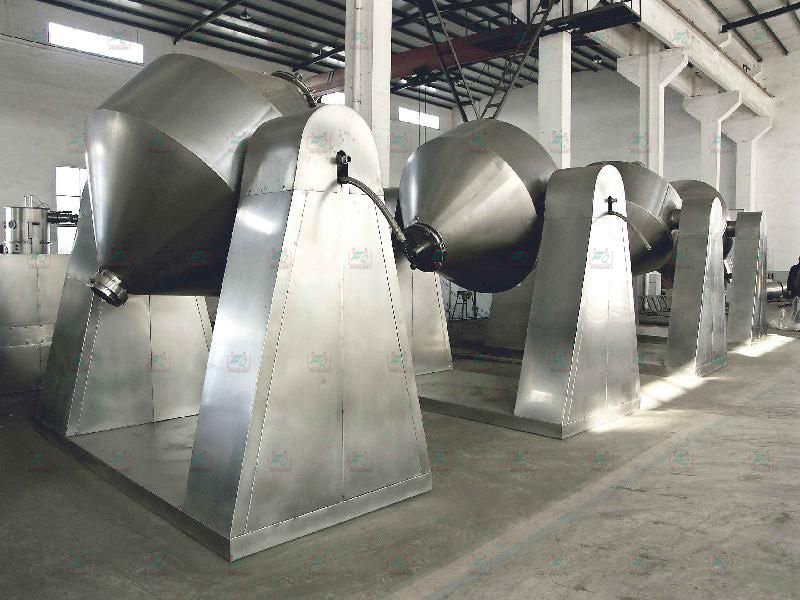

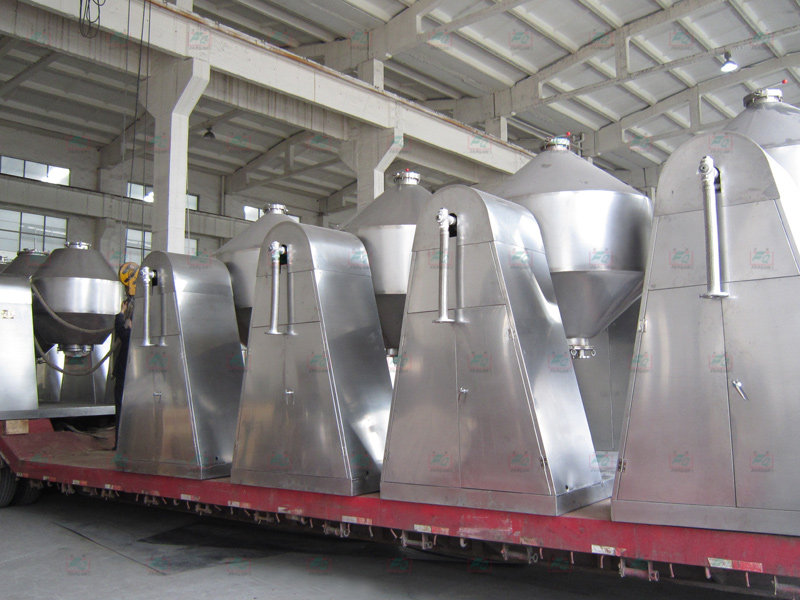

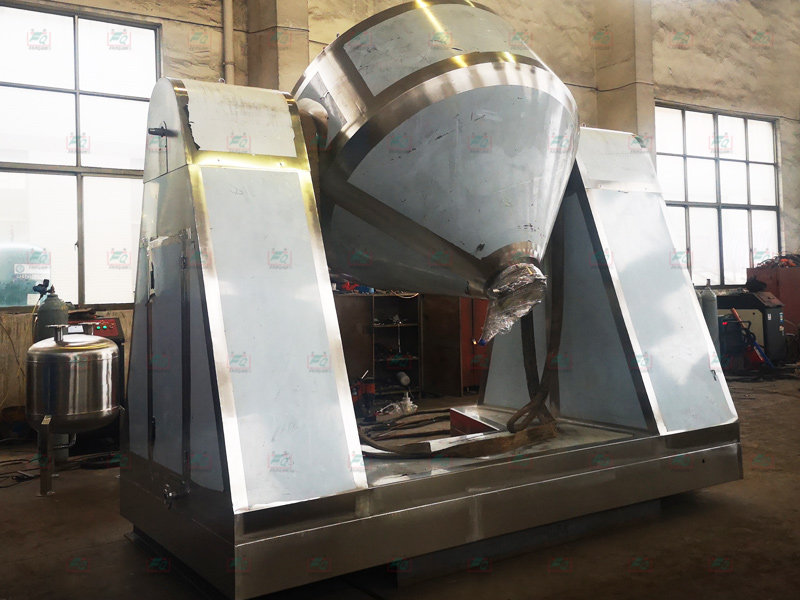

SZG Series Double Cone Rotary Vacuum Drying Equipment

Details Parameter Application

Double cone rotary vacuum dryer is in the closed sandwich through the hot energy (such as hot water, low-pressure steam or thermal oil), heat through the inner shell to the material to be dried. The material is in a vacuum state, the steam pressure drops so that the material surface water (solvent) saturated and evaporated, and by the vacuum pump in time to discharge the recovery.

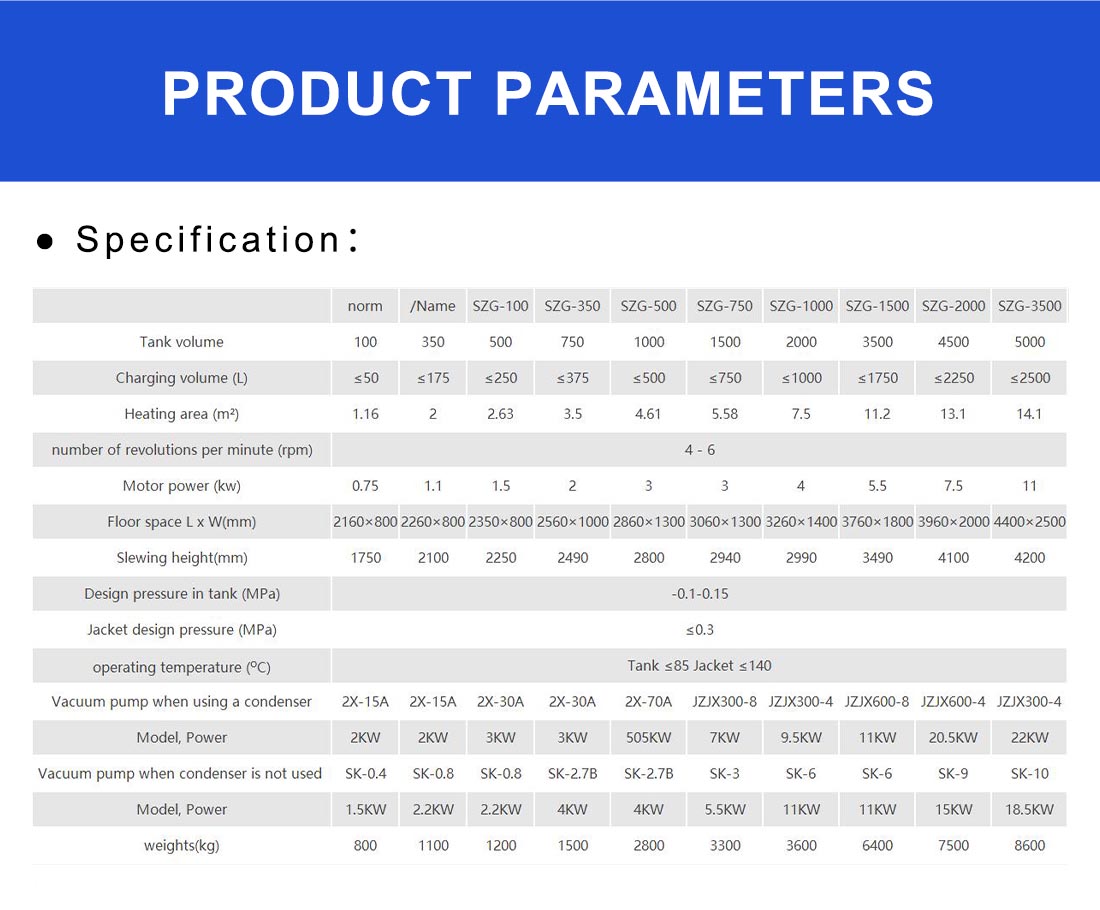

norm

/Name

SZG-100

SZG-350

SZG-500

SZG-750

SZG-1000

SZG-1500

SZG-2000

SZG-3500

SZG-4500

SZG-5000

Tank volume

100

350

500

750

1000

1500

2000

3500

4500

5000

Charging volume (L)

≤50

≤175

≤250

≤375

≤500

≤750

≤1000

≤1750

≤2250

≤2500

Heating area (m²)

1.16

2.63

3.5

4.61

5.58

7.5

11.2

13.1

14.1

number of revolutions per minute (rpm)

4 - 6

Motor power (kw)

0.75

1.1

1.5

5.5

7.5

Floor space L x W(mm)

2160×800

2260×800

2350×800

2560×1000

2860×1300

3060×1300

3260×1400

3760×1800

3960×2000

4400×2500

Slewing height(mm)

1750

2100

2250

2490

2800

2940

2990

3490

4100

4200

Design pressure in tank (MPa)

-0.1-0.15

Jacket design pressure (MPa)

≤0.3

operating temperature (^oC)

Tank ≤85 Jacket ≤140

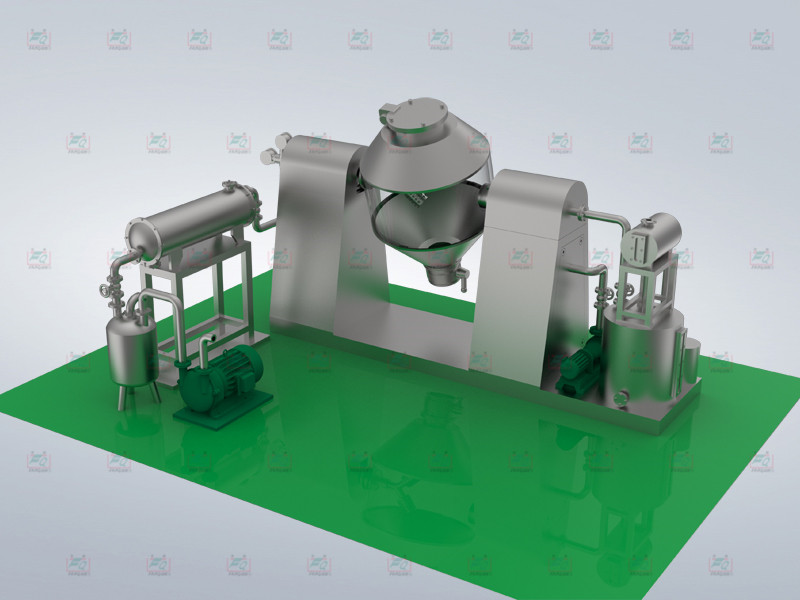

Vacuum pump when using a condenser

2X-15A

2X-30A

2X-70A

JZJX300-8

JZJX300-4

JZJX600-8

JZJX600-4

JZJX300-4

Model, Power

2KW

3KW

505KW

7KW

9.5KW

11KW

20.5KW

22KW

Vacuum pump when condenser is not used

SK-0.4

SK-0.8

SK-2.7B

SK-3

SK-6

SK-9

SK-10

Model, Power

1.5KW

2.2KW

4KW

5.5KW

11KW

15KW

18.5KW

weights(kg)

800

1100

1200

1500

2800

3300

3600

6400

7500

8600

Note: For materials with great change in volume before and after drying, the loading coefficient can be appropriately increased or reduced.

Applicable to chemical, pharmaceutical, food and other indus-tries of powder, granular and fiber concentration, mixing, dryingand low-temperature drying of materials(such as biochemicalproducts,etc.),more suitable for easy oxidation, volatile,heat-sensitive,strong stimulation, toxic materials and materialsare not permitted to destroy the drying of crystalline materials

Jiangsu Fanqun Drying Firm Equipment Factory Co., Ltd. products sell well all over the country, exported to the United States, Japan and Southeast Asian countries, welcomed by domestic and foreign users, the market reputation is excellent, but also China's drying equipment in the professional manufacturer of larger, more varieties of better quality of enterprises.

Complete scientific and quality system Professional technical team and superb technology Sophisticated production equipment

The company has large laser cutting machine, large water cutting machine, large plasma cutting machine, large automatic welding machine, non-destructive testing, mass spectrometer planer, bending machine, shearing machine and other high-end manufacturing and processing and inspection equipment.

Perfect after-sales service system

Pre-sales services :To provide you with project design, process design, suitable for your machine and equipment selection program development, according to your special needs, design and manufacture of products, for your training of technical operators.

Services during sale :Accompany you through the acceptance of the equipment and assist in the development of construction plans and detailed procedures.

After-sales service :The company sends technicians to the site to guide equipment installation commissioning site and training operators.
