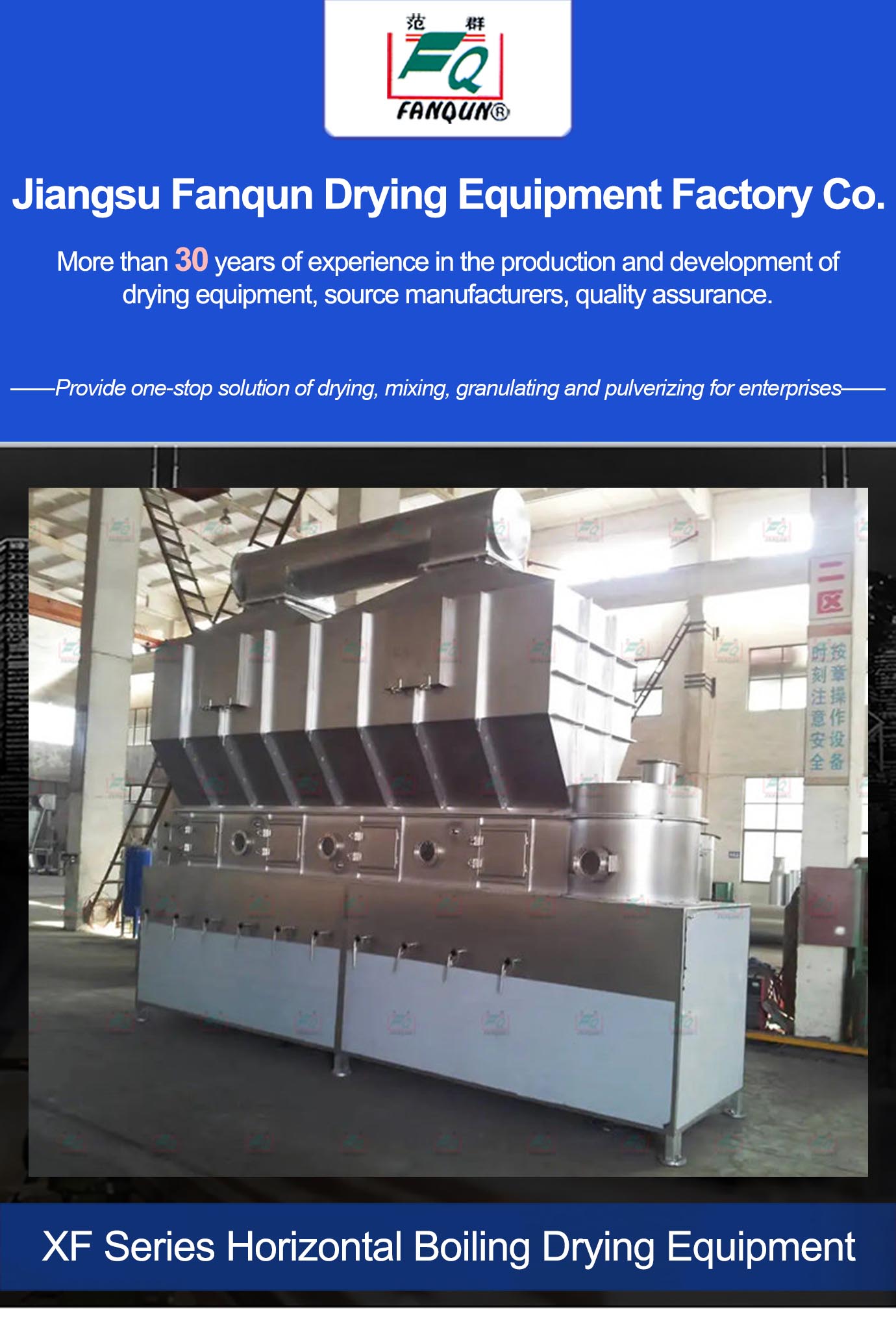

XF Series Horizontal Boiling Drying Equipment

Details Parameter Application

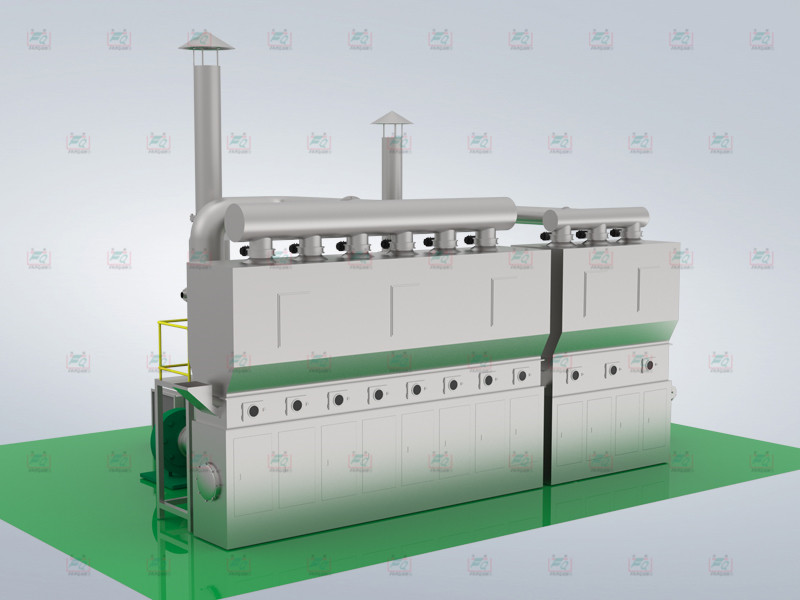

Boiling drying equipment, also known as fluidized bed, which is composed of air filter, heater, boiling bed mainframe, cyclone separator, cloth bag dust collector, high-pressure centrifugal fan, and operating table.

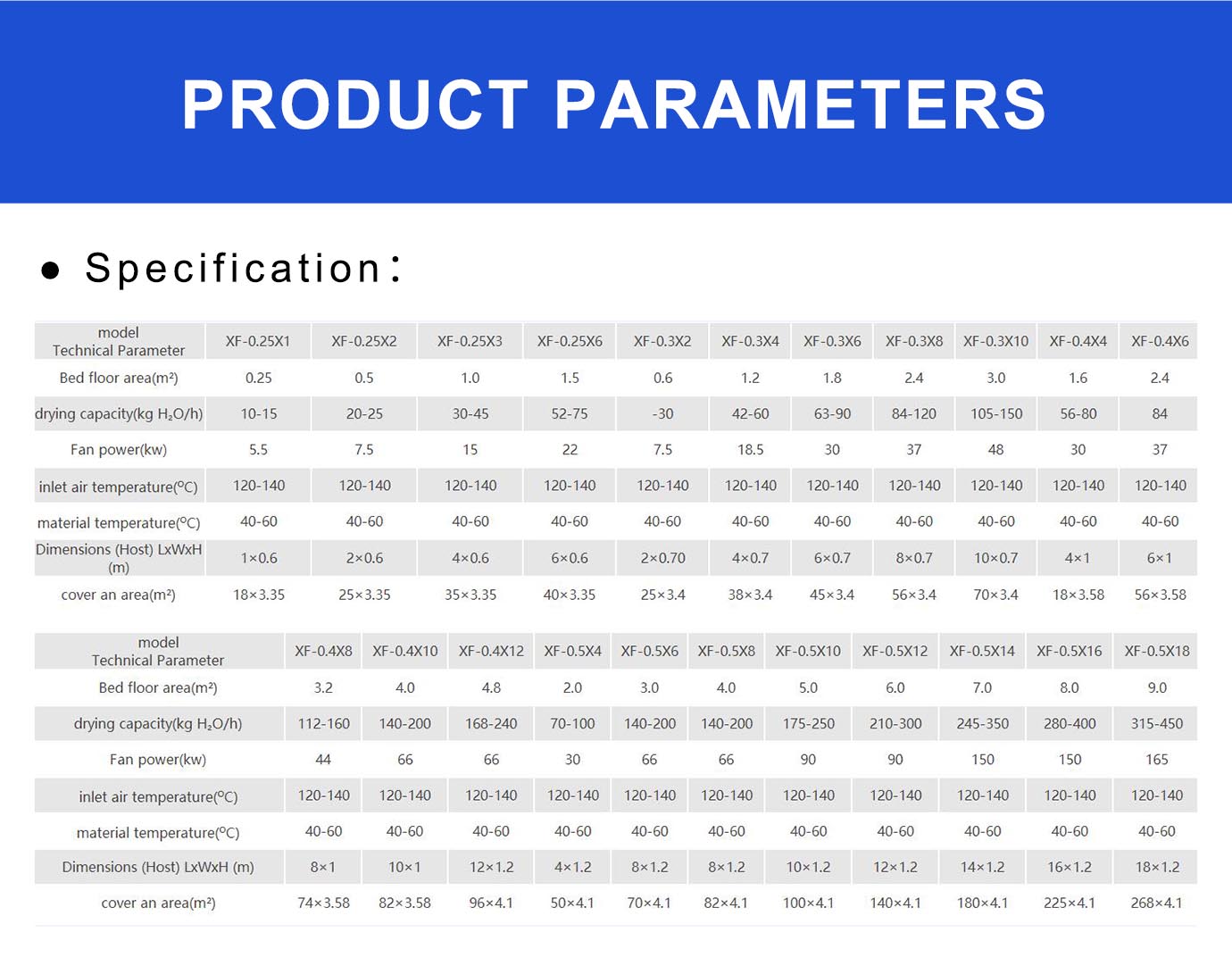

model Technical Parameter	XF-0.25X1	XF-0.25X2	XF-0.25X3	XF-0.25X6	XF-0.3X2	XF-0.3X4	XF-0.3X6	XF-0.3X8	XF-0.3X10	XF-0.4X4	XF-0.4X6
Bed floor area(m²)	0.25	0.5	1.0	1.5	0.6	1.2	1.8	2.4	3.0	1.6	2.4
drying capacity(kg H₂O/h)	10-15	20-25	30-45	52-75	-30	42-60	63-90	84-120	105-150	56-80	84
Fan power(kw)	5.5	7.5	15	22	7.5	18.5	30	37	48	30	37
inlet air temperature(^oC)	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140
material temperature(^oC)	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60
Dimensions (Host) LxWxH (m)	1×0.6	2×0.6	4×0.6	6×0.6	2×0.70	4×0.7	6×0.7	8×0.7	10×0.7	4×1	6×1
cover an area(m²)	18×3.35	25×3.35	35×3.35	40×3.35	25×3.4	38×3.4	45×3.4	56×3.4	70×3.4	18×3.58	56×3.58

model Technical Parameter	XF-0.4X8	XF-0.4X10	XF-0.4X12	XF-0.5X4	XF-0.5X6	XF-0.5X8	XF-0.5X10	XF-0.5X12	XF-0.5X14	XF-0.5X16	XF-0.5X18
Bed floor area(m²)	3.2	4.0	4.8	2.0	3.0	4.0	5.0	6.0	7.0	8.0	9.0
drying capacity(kg H₂O/h)	112-160	140-200	168-240	70-100	140-200	140-200	175-250	210-300	245-350	280-400	315-450
Fan power(kw)	44	66	66	30	66	66	90	90	150	150	165
inlet air temperature(^oC)	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140
material temperature(^oC)	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60
Dimensions (Host) LxWxH (m)	8×1	10×1	12×1.2	4×1.2	8×1.2	8×1.2	10×1.2	12×1.2	14×1.2	16×1.2	18×1.2
cover an area(m²)	74×3.58	82×3.58	96×4.1	50×4.1	70×4.1	82×4.1	100×4.1	140×4.1	180×4.1	225×4.1	268×4.1

Drying operation of pharmaceuticals, chemical raw materials,food, grain processing,feed. Such as: raw materials, tabletgranules,traditional Chinese medicine, health food, beverage.corn germ, feed, plastic resin, citric acid and other powderymaterials drying dehumidification. Applicable material particlesize is generally0.1~6mm,the best particle size is 0.5~3mm.

Jiangsu Fanqun Drying Firm Equipment Factory Co., Ltd. products sell well all over the country, exported to the United States, Japan and Southeast Asian countries, welcomed by domestic and foreign users, the market reputation is excellent, but also China's drying equipment in the professional manufacturer of larger, more varieties of better quality of enterprises.

Complete scientific and quality system Professional technical team and superb technology Sophisticated production equipment

The company has large laser cutting machine, large water cutting machine, large plasma cutting machine, large automatic welding machine, non-destructive testing, mass spectrometer planer, bending machine, shearing machine and other high-end manufacturing and processing and inspection equipment.

Perfect after-sales service system

Pre-sales services :To provide you with project design, process design, suitable for your machine and equipment selection program development, according to your special needs, design and manufacture of products, for your training of technical operators.

Services during sale :Accompany you through the acceptance of the equipment and assist in the development of construction plans and detailed procedures.

After-sales service :The company sends technicians to the site to guide equipment installation commissioning site and training operators.

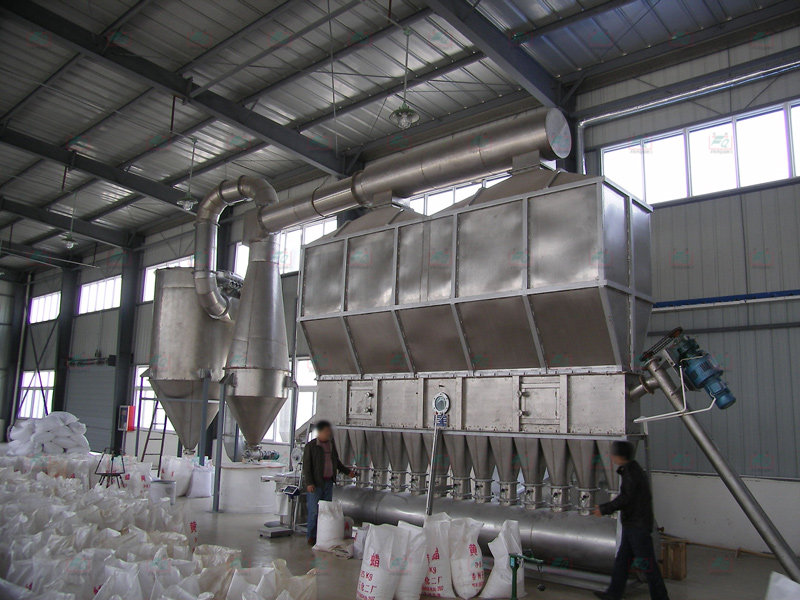

Cases
